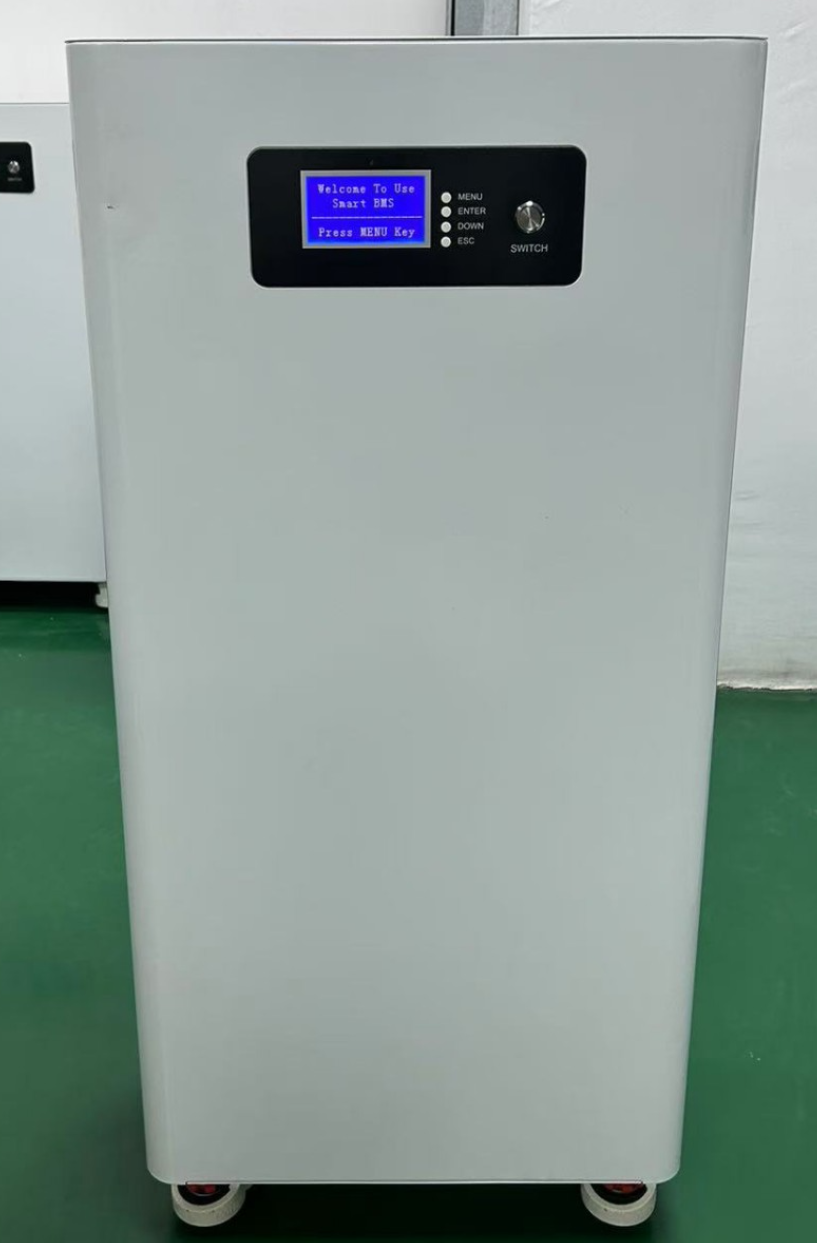

Mobile K05 Series
A flexible mobile residential energy storage platform covering 7.68kWh to 20.48kWh, easy to deploy indoors, with five capacity options including a 25.6V low-voltage model.
Key Features
Mobile Design
Integrated castor wheels for flexible indoor movement and deployment.
Safe & Reliable
LiFePO4 cells with multi-layer BMS protection.
Long Cycle Life
6000+ cycles at 80% Depth of Discharge.
PV-Ready
Seamless integration with residential PV systems to maximize self-consumption.
Capacity Expansion
Supports parallel connection of multiple units for flexible capacity scaling.
Smart Communication
CAN / RS485 / RS232 for remote monitoring and management.
Technical Specifications
| Parameter | LQ-W7.5-K05 7.68 kWh |

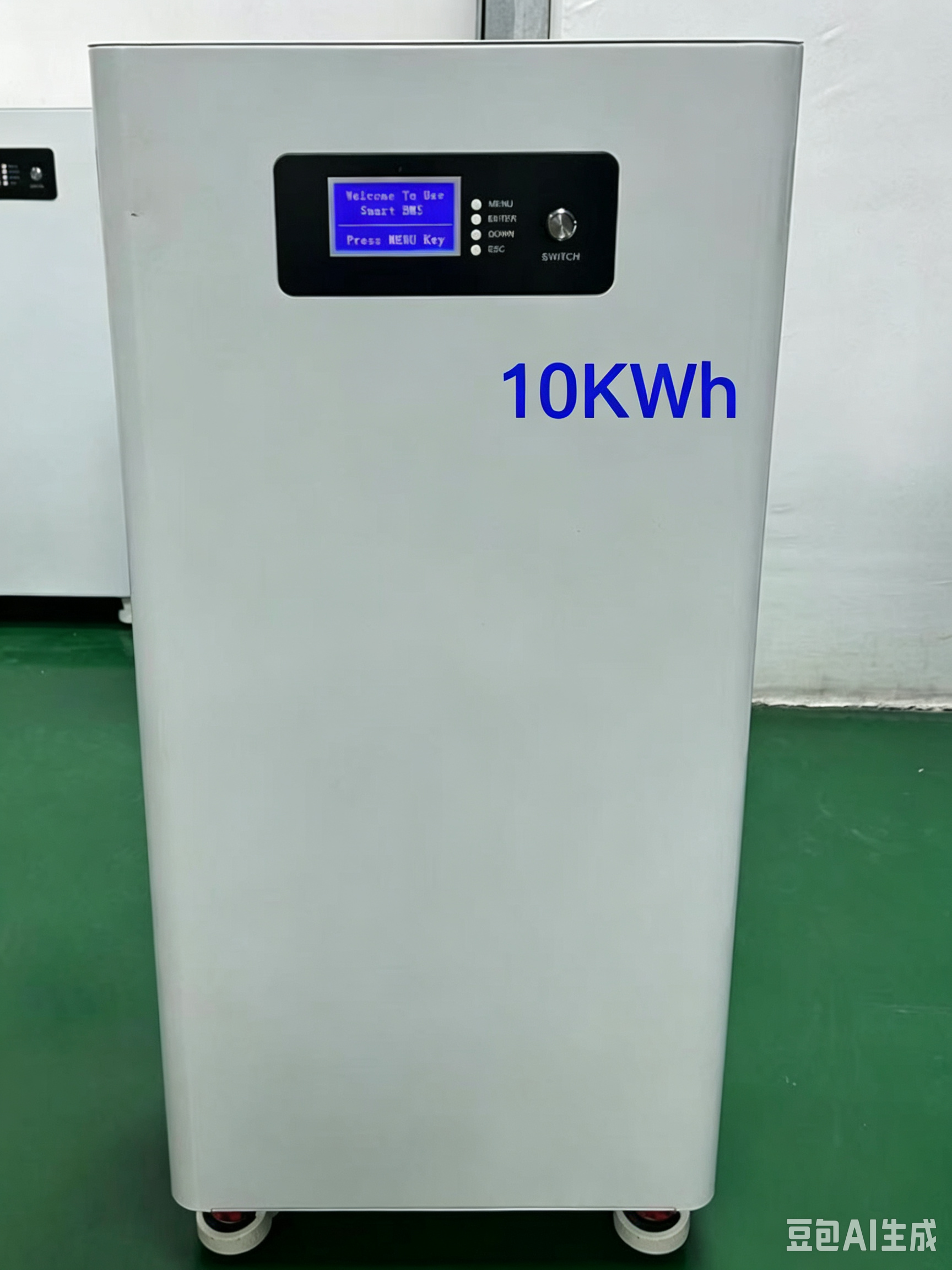

LQ-W10-K05 10.24 kWh |

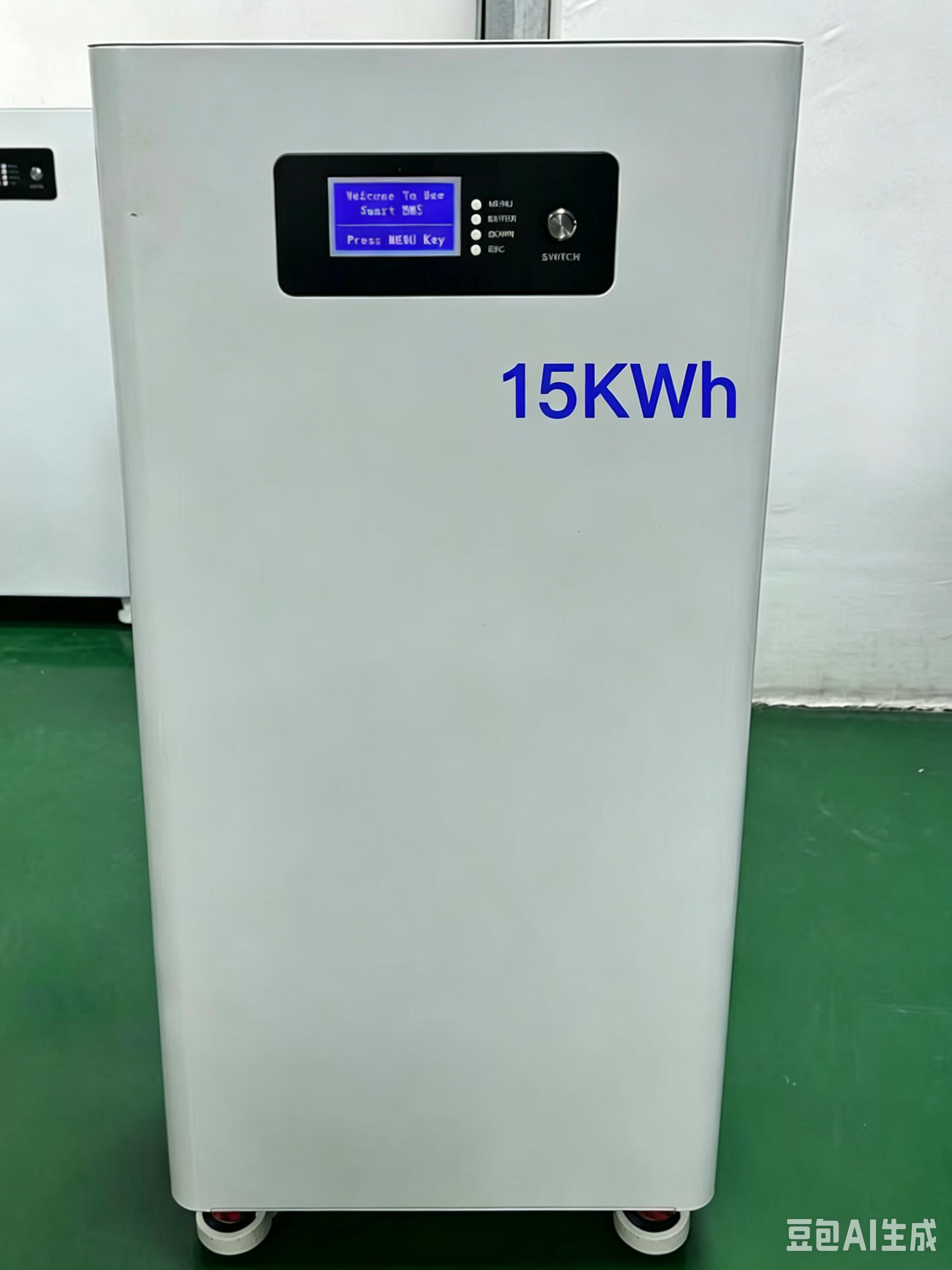

LQ-W15-K05 15.36 kWh |
LQ-W16-K05 16.08 kWh |
LQ-W20-K05 20.48 kWh |
|---|---|---|---|---|---|
| Cell Chemistry | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Energy | 7.68 kWh | 10.24 kWh | 15.36 kWh | 16.08 kWh | 20.48 kWh |
| Nominal Voltage | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 300Ah | 200Ah | 300Ah | 314Ah | 400Ah |
| Charge Cut-off Voltage | 29.2V | 58.4V | 58.4V | 58.4V | 58.4V |
| Discharge Cut-off Voltage | 20.8V | 41.6V | 41.6V | 41.6V | 41.6V |
| Max Charge Current | 200A | 150A | 150A | 160A | 200A |
| Max Discharge Current | 200A | 200A | 200A | 200A | 200A |
| Communication Interface | RS485 + CAN + RS232 | RS485 + CAN + RS232 | RS485 + CAN + RS232 | RS485 + CAN + RS232 | RS485 + CAN + RS232 |
| Dimensions (LxWxH) | 629x415x250mm±3mm | 890x416x237mm±2mm | 890x416x237mm±2mm | 890x416x237mm±2mm | 1183x490x340mm±2mm |
| Net Weight | 64kg | 90kg | 115kg | 115kg | 160kg |
| Gross Weight | 75kg | 103kg | 123kg | 123kg | 195kg |
| Charge Temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
| Discharge Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 45°C | -10°C ~ 45°C | -10°C ~ 45°C | -10°C ~ 45°C | -10°C ~ 45°C |
Inverter Compatibility
| Brand | Model | Communication | Status |
|---|---|---|---|
| DEYE | SUN-3K/5K/8K/10K | CAN | Verified |
| Victron | MultiPlus-II | CAN | Verified |
| GROWATT | SPH 3000-10000 | CAN / RS485 | Verified |
| GoodWe | ET/EH/BH Series | CAN | Verified |
| SMA | Sunny Boy / Tripower | RS485 | Verified |
| SOLIS | RHI-3K/4K/5K/6K | RS485 | Verified |
| Sofar | ME 3000-12000 | RS485 | Verified |
| Luxpower | LXP-3000/5000/10000 | RS485 | Verified |
Can't find your inverter?
Contact us to check compatibility for your inverter model.
Check CompatibilityAll models in this series are verified compatible with Deye, Victron, Growatt, GoodWe, SMA, Solis, Sofar, Luxpower and other major inverter brands via CAN / RS485 / RS232.
Applications
Home Backup
Keeps critical household loads powered during grid outages.
PV + Storage
Stores surplus solar power for night-time and rainy-day use.
Self-Consumption
Raises green-power self-use rate and lowers electricity bills.
Peak Shaving
Reduces peak-hour grid consumption and optimizes energy costs.
Flexible Home Use
The mobile design lets you place the unit flexibly in any room for convenient use.
Installation Process
Site Assessment
Check site and system requirements.
Battery Installation
Mount the battery securely on the wall.
Inverter Connection
Connect the battery to a compatible inverter.
System Configuration
Configure communication settings.
Commissioning
Test the system and ensure proper operation.
Operation
System ready for reliable performance.
Certifications & Safety
- Multi-level BMS protection
- Over-charge / Over-discharge protection
- Over-current / Short-circuit protection
- Temperature protection
Downloads
Frequently Asked Questions
Five capacities are available: 7.68 kWh, 10.24 kWh, 15.36 kWh, 16.08 kWh and 20.48 kWh, corresponding to the LQ-W7.5-K05, LQ-W10-K05, LQ-W15-K05, LQ-W16-K05 and LQ-W20-K05 models.
CAN, RS485 and RS232 are supported, compatible with mainstream inverters and energy-storage monitoring systems.
Verified compatible with GROWATT, DEYE, SOLIS, Victron and other major brands. See the inverter compatibility list for details.
OEM/ODM customization is supported, including silk-screen, packaging and enclosure branding.
Please confirm regular MOQ with sales; small-batch sampling is supported.
Multi-unit parallel expansion is supported; the exact number depends on model and system design.
Pre-mass-production sample orders are supported for testing, validation and certification.
CE, IEC, UN38.3, RoHS and MSDS certified.
