Mobile K06 Touch Display Series
Mobile residential energy storage with a built-in LCD touch display for real-time monitoring without a phone app. Three high-capacity options: 15kWh, 30kWh and 50kWh.
Key Features
Built-in LCD Touchscreen
On-board touchscreen shows real-time system status without a phone app.
Mobile & Portable
Wheeled design for easy relocation and flexible deployment in any space.
Safe & Reliable
LiFePO4 cells with multi-layer BMS protection.
Long Cycle Life
6000+ cycles at 80% Depth of Discharge.
PV-Ready
Seamless integration with residential PV systems to maximize self-consumption.
Smart Communication
CAN / RS485 / RS232 for remote monitoring and management.
Technical Specifications
| Parameter | LQ-W15-K06 15.36 kWh |

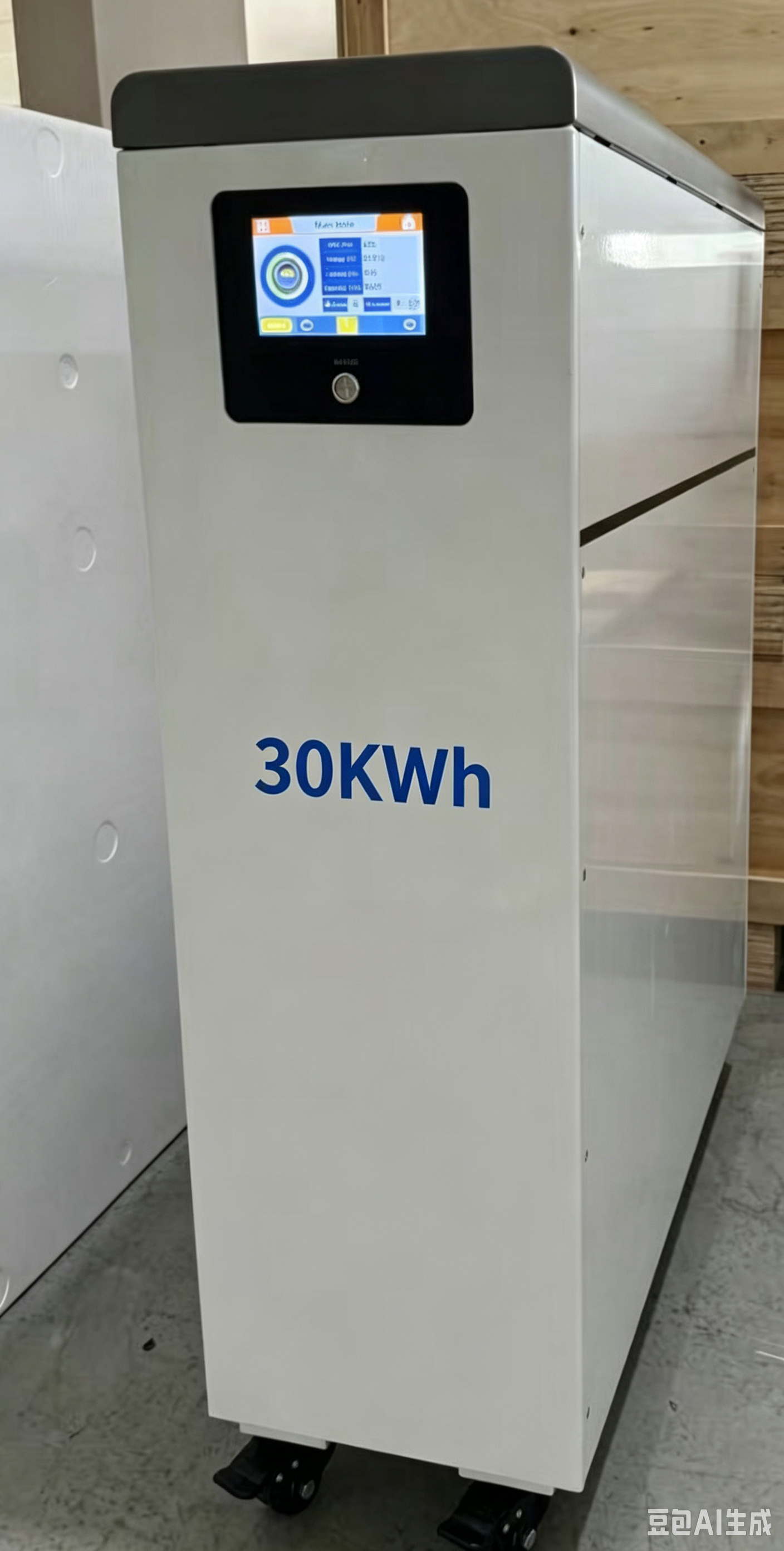

LQ-W30-K06 30.72 kWh |

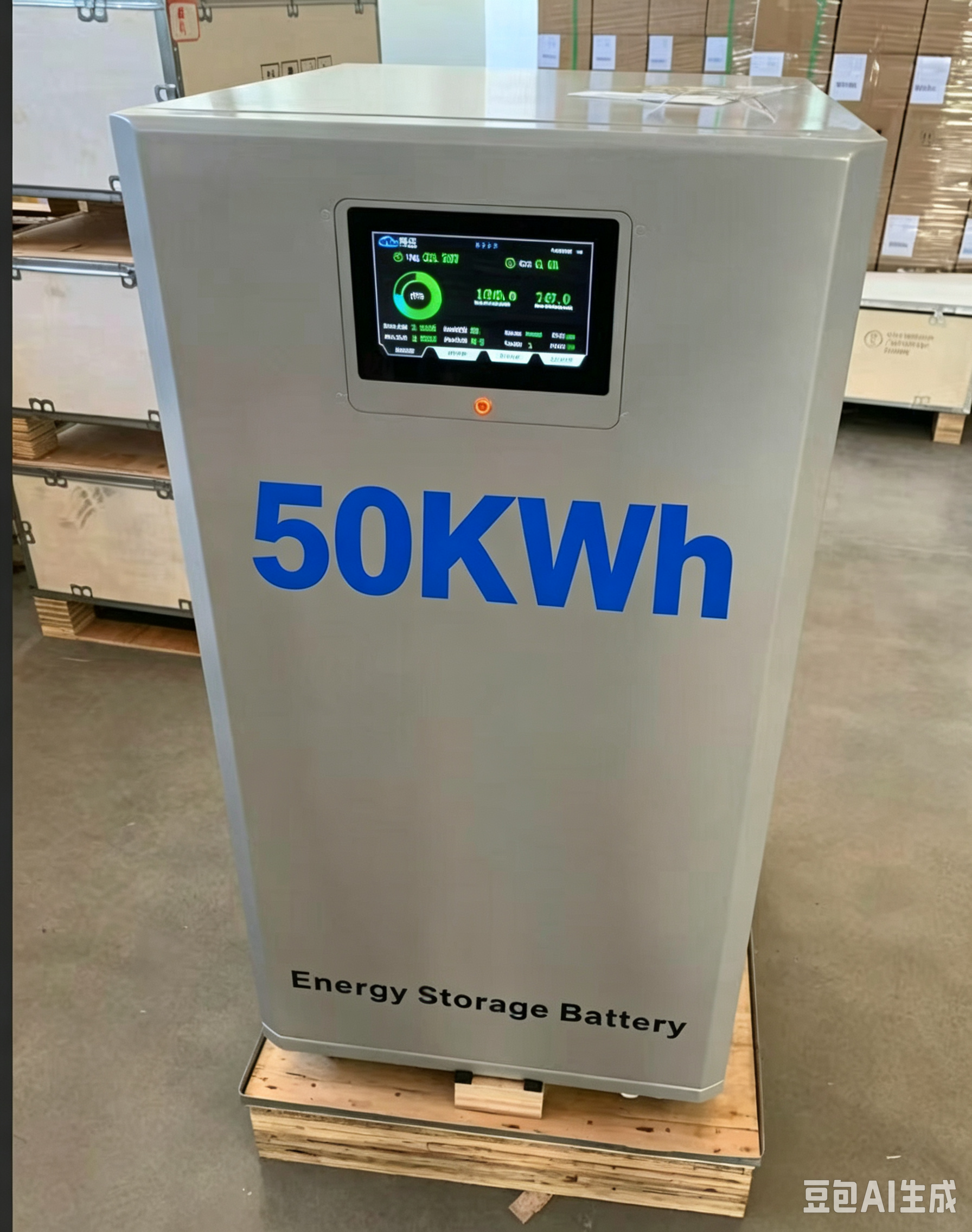

LQ-W50-K06 51.2 kWh |
|---|---|---|---|
| Cell Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Energy | 15.36 kWh | 30.72 kWh | 51.2 kWh |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 300Ah | 600Ah | 1000Ah |
| Charge Cut-off Voltage | 58.4V | 58.4V | 58.4V |
| Discharge Cut-off Voltage | 41.6V | 41.6V | 41.6V |
| Max Charge Current | 200A | 200A | 200A |
| Max Discharge Current | 200A | 200A | 200A |
| Communication Interface | RS485 + CAN + RS232 | RS485 + CAN + RS232 | RS485 + CAN + RS232 |
| Dimensions (LxWxH) | 940x400x350mm±2mm | 1014x809x285mm±3mm | 1027x618x524mm±3mm |
| Net Weight | 138kg | 236kg | 372kg |
| Gross Weight | 157kg | 250kg | 395kg |
| Charge Temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
| Discharge Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 45°C | -10°C ~ 45°C | -10°C ~ 45°C |
Inverter Compatibility
| Brand | Model | Communication | Status |
|---|---|---|---|
| GROWATT | SPH 3000-10000 | CAN / RS485 | Verified |
| DEYE | SUN-3K/5K/8K/10K | CAN | Verified |
| SOLIS | RHI-3K/4K/5K/6K | RS485 | Verified |
| Victron | MultiPlus-II | CAN | Verified |
Can't find your inverter?
Contact us to check compatibility for your inverter model.
Check CompatibilityAll models in this series are verified compatible with Deye, Victron, Growatt, GoodWe, SMA, Solis, Sofar, Luxpower and other major inverter brands via CAN / RS485 / RS232.
Applications
Home Backup
Keeps critical household loads powered during grid outages.
PV + Storage
Stores surplus solar power for night-time and rainy-day use.
Self-Consumption
Raises green-power self-use rate and lowers electricity bills.
Peak Shaving
Reduces peak-hour grid consumption and optimizes energy costs.
Installation Process
Site Assessment
Check site and system requirements.
Battery Installation
Mount the battery securely on the wall.
Inverter Connection
Connect the battery to a compatible inverter.
System Configuration
Configure communication settings.
Commissioning
Test the system and ensure proper operation.
Operation
System ready for reliable performance.
Certifications & Safety
- Multi-level BMS protection
- Over-charge / Over-discharge protection
- Over-current / Short-circuit protection
- Temperature protection
Downloads
Frequently Asked Questions
Three capacities are available: 15.36 kWh, 30.72 kWh and 51.2 kWh, corresponding to the LQ-W15-K06, LQ-W30-K06 and LQ-W50-K06 models.
CAN, RS485 and RS232 are supported, compatible with mainstream inverters and energy-storage monitoring systems.
Verified compatible with GROWATT, DEYE, SOLIS, Victron and other major brands. See the inverter compatibility list for details.
The built-in touchscreen shows real-time system status without a phone app.
OEM/ODM customization is supported, including silk-screen, packaging and enclosure branding.
Please confirm regular MOQ with sales; small-batch sampling is supported.
Multi-unit parallel expansion is supported; the exact number depends on model and system design.
CE, IEC, UN38.3, RoHS and MSDS certified.
