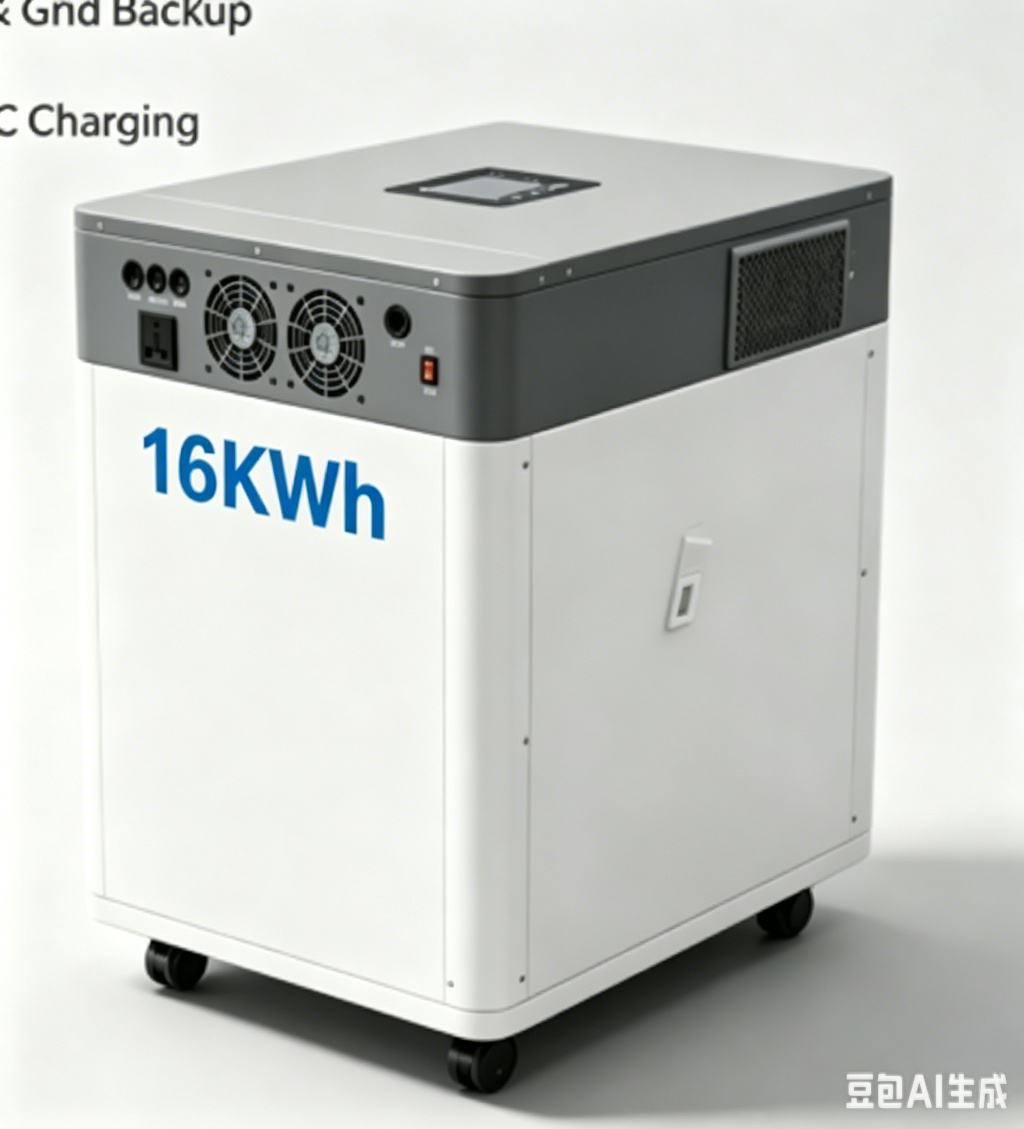

LQ-W16-P6.5-K01 16kWh Mobile All-in-One Energy Storage
Key Features
All-in-One Design
Mobile all-in-one unit with a built-in inverter for plug-and-play use, no external inverter required; integrated castors for flexible indoor deployment.
Safe & Reliable
LiFePO4 cells with multi-layer BMS protection.
Long Cycle Life
6000+ cycles at 80% Depth of Discharge.
PV-Ready
Seamless integration with residential PV systems to maximize self-consumption.
Capacity Expansion
Supports parallel connection of multiple units for flexible capacity scaling.
Smart Communication
CAN / RS485 / RS232 for remote monitoring and management.
Technical Specifications
| Parameter | LQ-W16-P6.5-K01 16.07 kWh |
|---|---|
| 电池化学 | LiFePO4 |
| 标称能量 | 16.07 kWh |
| 标称电压 | 51.2V |
| 标称容量 | 314Ah |
| 充电截止电压 | 58.4V |
| 放电截止电压 | 41.6V |
| 最大充电电流 | 150A |
| 最大放电电流 | 150A |
| 通信接口 | RS485 + CAN + RS232 |
| 外形尺寸 (L×W×H) | |
| 净重 | |
| 毛重 | |
| 充电温度 | 0°C ~ 45°C |
| 放电温度 | -20°C ~ 60°C |
| 存储温度 | -10°C ~ 45°C |
Inverter Compatibility
| Brand | Model | Communication | Status |
|---|---|---|---|
| GROWATT | SPH 3000-10000 | CAN / RS485 | Verified |
| DEYE | SUN-3K/5K/8K/10K | CAN | Verified |
| SOLIS | RHI-3K/4K/5K/6K | RS485 | Verified |
| Victron | MultiPlus-II | CAN | Verified |
Can't find your inverter?
Contact us to check compatibility for your inverter model.
Check CompatibilityAll models in this series are verified compatible with Deye, Victron, Growatt, GoodWe, SMA, Solis, Sofar, Luxpower and other major inverter brands via CAN / RS485 / RS232.
Applications
Home Backup
Keeps critical household loads powered during grid outages.
PV + Storage
Stores surplus solar power for night-time and rainy-day use.
Self-Consumption
Raises green-power self-use rate and lowers electricity bills.
Peak Shaving
Reduces peak-hour grid consumption and optimizes energy costs.
Installation Process
Site Assessment
Check site and system requirements.
Battery Installation
Mount the battery securely on the wall.
Inverter Connection
Connect the battery to a compatible inverter.
System Configuration
Configure communication settings.
Commissioning
Test the system and ensure proper operation.
Operation
System ready for reliable performance.
Certifications & Safety
- Multi-level BMS protection
- Over-charge / Over-discharge protection
- Over-current / Short-circuit protection
- Temperature protection
Downloads
Frequently Asked Questions
The all-in-one has a built-in inverter for plug-and-play use; the K-series are pure battery modules that require an external inverter.
CAN, RS485 and RS232 are supported, compatible with mainstream inverters and energy-storage monitoring systems.
Verified compatible with GROWATT, DEYE, SOLIS, Victron and other major brands. See the inverter compatibility list for details.
OEM/ODM customization is supported, including silk-screen, packaging and enclosure branding.
CE, IEC, UN38.3, RoHS and MSDS certified.
