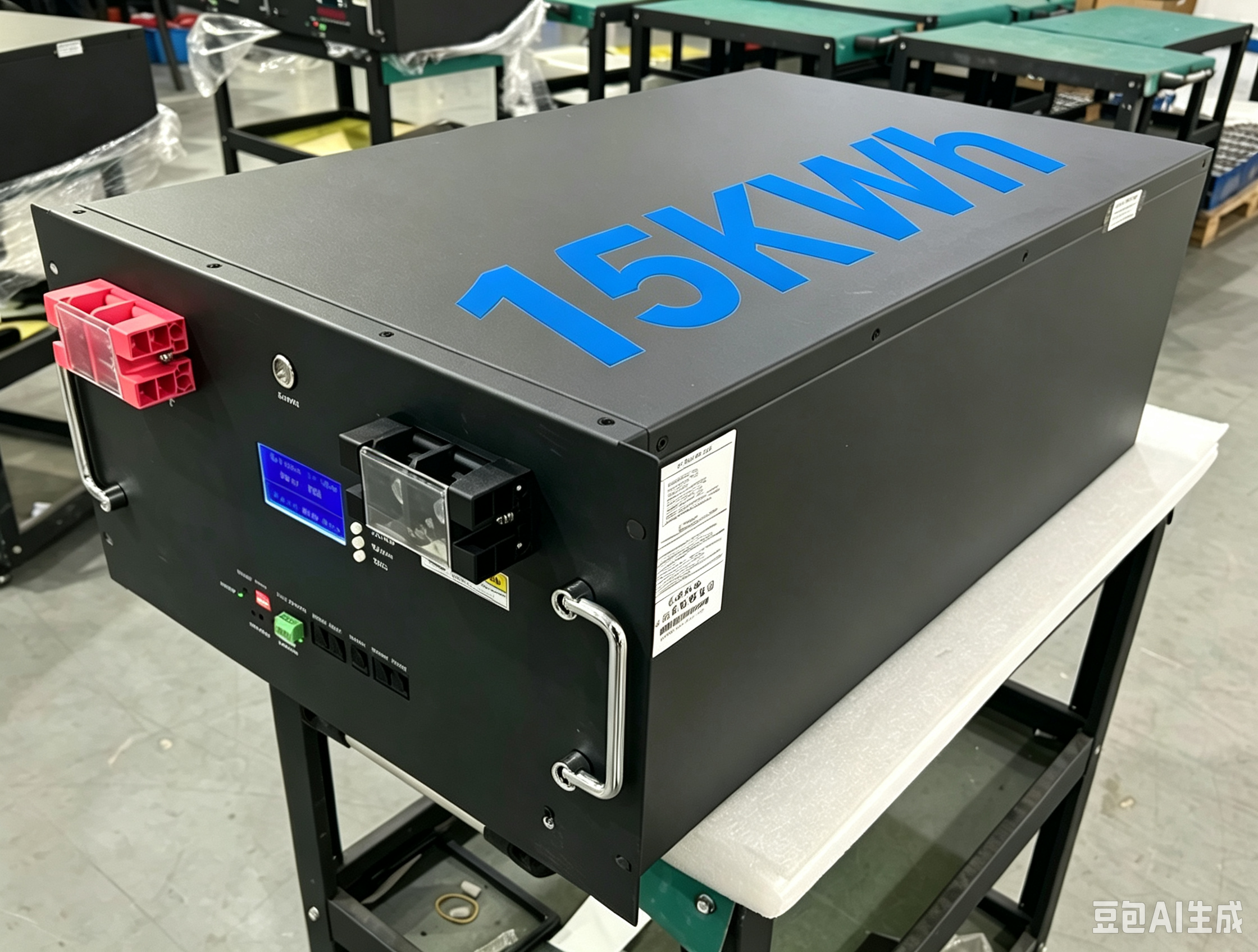

Rack-Mounted K01 Series
Modular rack-mounted LiFePO4 battery platform for home energy storage, backup power and flexible system configurations. Three capacity options: 5kWh, 10kWh and 15kWh.
Key Features
Modular Rack
Space-saving rack-mount installation with flexible system configuration.
Safe & Reliable
LiFePO4 cells with multi-layer BMS protection.
Long Cycle Life
6000+ cycles at 80% Depth of Discharge.
PV-Ready
Seamless integration with residential PV systems to maximize self-consumption.
Capacity Expansion
Supports parallel connection of multiple units for flexible capacity scaling.
Smart Communication
CAN / RS485 / RS232 for remote monitoring and management.
Technical Specifications
| Parameter | LQ-R5-K01 5.12 kWh |
LQ-R10-K01 10.24 kWh |
LQ-R15-K01 15.36 kWh |
|---|---|---|---|
| Cell Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Energy | 5.12 kWh | 10.24 kWh | 15.36 kWh |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 300Ah |
| Charge Cut-off Voltage | 58.4V | 58.4V | 58.4V |
| Discharge Cut-off Voltage | 40V | 41.6V | 41.6V |
| Max Charge Current | 50A | 100A | 100A |
| Max Discharge Current | 100A | 200A | 100A |
| Communication Interface | RS485 + CAN + RS232 | RS485 + CAN + RS232 | RS485 + CAN + RS232 |
| Dimensions (LxWxH) | 490x482.6x177mm±3mm | 626x482x270mm±2mm | 731x483x270mm±2mm |
| Net Weight | 46kg | 95kg | 123kg |
| Gross Weight | 50kg | 110kg | 130kg |
| Charge Temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
| Discharge Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 45°C | -10°C ~ 45°C | -10°C ~ 45°C |
Inverter Compatibility
| Brand | Model | Communication | Status |
|---|---|---|---|
| GROWATT | SPH 3000-10000 | CAN / RS485 | Verified |
| DEYE | SUN-3K/5K/8K/10K | CAN | Verified |
| SOLIS | RHI-3K/4K/5K/6K | RS485 | Verified |
| Victron | MultiPlus-II | CAN | Verified |
Can't find your inverter?
Contact us to check compatibility for your inverter model.
Check CompatibilityAll models in this series are verified compatible with Deye, Victron, Growatt, GoodWe, SMA, Solis, Sofar, Luxpower and other major inverter brands via CAN / RS485 / RS232.
Applications
Home Backup
Keeps critical household loads powered during grid outages.
PV + Storage
Stores surplus solar power for night-time and rainy-day use.
Self-Consumption
Raises green-power self-use rate and lowers electricity bills.
Rack System
Rack-mounted deployment for scalable, modular energy storage systems.
Installation Process
Site Assessment
Check site and system requirements.
Battery Installation
Mount the battery securely on the wall.
Inverter Connection
Connect the battery to a compatible inverter.
System Configuration
Configure communication settings.
Commissioning
Test the system and ensure proper operation.
Operation
System ready for reliable performance.
Certifications & Safety
- Multi-level BMS protection
- Over-charge / Over-discharge protection
- Over-current / Short-circuit protection
- Temperature protection
Downloads
Frequently Asked Questions
Three capacities are available: 5.12 kWh, 10.24 kWh and 15.36 kWh, corresponding to the LQ-R5-K01, LQ-R10-K01 and LQ-R15-K01 models.
CAN, RS485 and RS232 are supported, compatible with mainstream inverters and energy-storage monitoring systems.
Verified compatible with GROWATT, DEYE, SOLIS, Victron and other major brands. See the inverter compatibility list for details.
OEM/ODM customization is supported, including silk-screen, packaging and enclosure branding.
Please confirm regular MOQ with sales; small-batch sampling is supported.
Multi-unit parallel expansion is supported; the exact number depends on model and system design.
Pre-mass-production sample orders are supported for testing, validation and certification.
CE, IEC, UN38.3, RoHS and MSDS certified.
